AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

Place of Origin : China, shenzhen

Brand Name : Nomo

Certification : CE, UL,FCC, ISO, ROHS,SAA

Model Number : ST120H

Waterproof : IP65

Efficiency lumen : 110lm / w

Beam angle : 60-120 degree

Option : Dimming

CCT : 2700k-6500k

CRI : >80

Power : 120W

MOQ : 1

Packaging Details : carton

Delivery Time : within 15 working days

Payment Terms : T/T, L/C, Western union

Supply Ability : 1000000sets

Contact Now

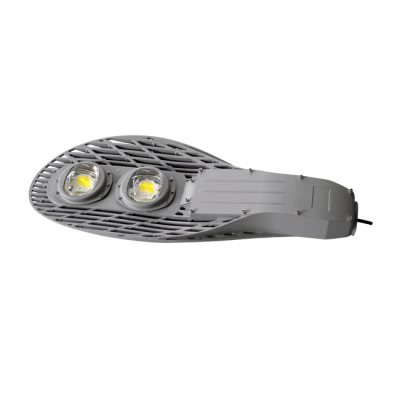

120W LED Street light



AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range
  • AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range
    • Model NO.ST120H



AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

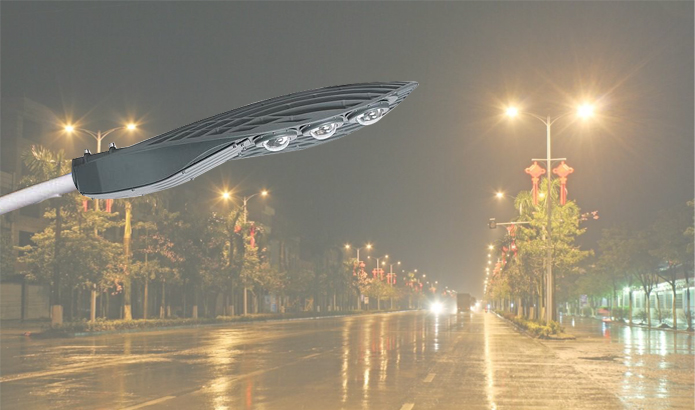

The project took the night

AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

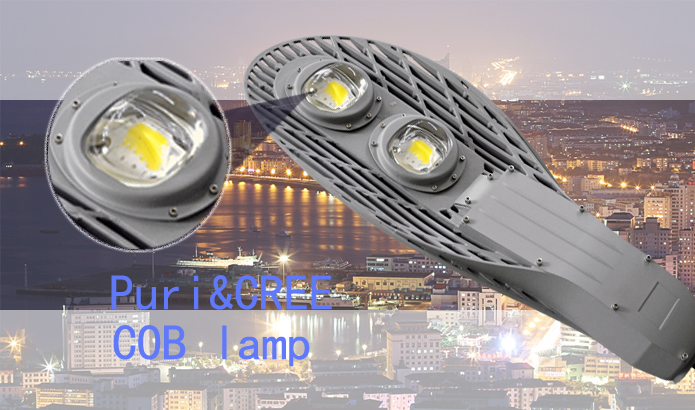

High power LED

AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

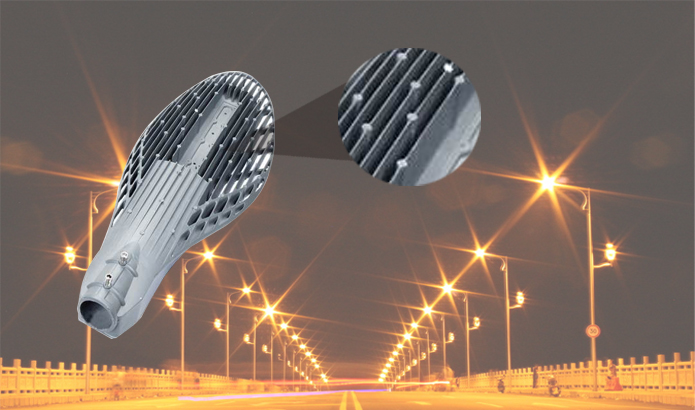

Using high density aluminum casting and become, integrated, high heat performance, beautiful appearance, convenient installation.

AC85 - 265V IP65 led street light ST120WW With Wide Voltage Range

Technical Parameters

Power

60W

80W

100W

150W

Input Voltage/Frequency

100-240VAC/50-60Hz

Input Current(Typ)

<0.55A/115VAC  <0.26A/230VAC

<0.7A/115VAC  <0.35A/230VAC

<0.87A/115VAC  <0.43A/230VAC

<1.3A/115VAC  <0.65A/230VAC

Output Voltage

28-36V Typ=30V

Output Current

2A

2.6A

3.3A

5A

Efficiency(Typ)

>93%

Power Factor(Typ)

PF＞0.98/115VAC   PF＞0.95/230VAC



LED Chips Quantity  LED

1 Pcs

1

2 Pcs

3 Pcs

LED Consumption  LED

60W

80W

100W

150W

System Consumption

64W

83W

105W

155W

LED Luminous Efficiency  LED

100-110Lm /W

Lamp’s Initial Flux

4800Lm

6400

8100 Lm

12150Lm

Color Temperature

2700K～7000K

Lamp’s Luminous Efficiency

≥81Lm /W

Lumen Maintenance

70%(50000Hrs)

Color Rendering Index

Ra≥75

Operating Temperature

-25℃ ～ +55℃

Storage Temperature

-25℃ ～ +65℃

IP Grade

IP65

Life-span

50000Hrs

Materials

Aluminum

The color of the lamp shell

White /Black/Grey

Mounting

Pole installation


Packing /weight

The size of the cartoon box

(L×W×H)

525mm*260mm*65mm

525mm*260mm*65mm

730mm*290mm*100mm

990mm*360mm*105mm

Qty/cartoon box

4

4

2

1

The net weight of radiator

3.2Kg

3.4Kg

6.1 Kg

8.9 Kg

The weight of the cartoon box after packing



15.7Kg

16.5Kg

14.3Kg

10.2Kg
